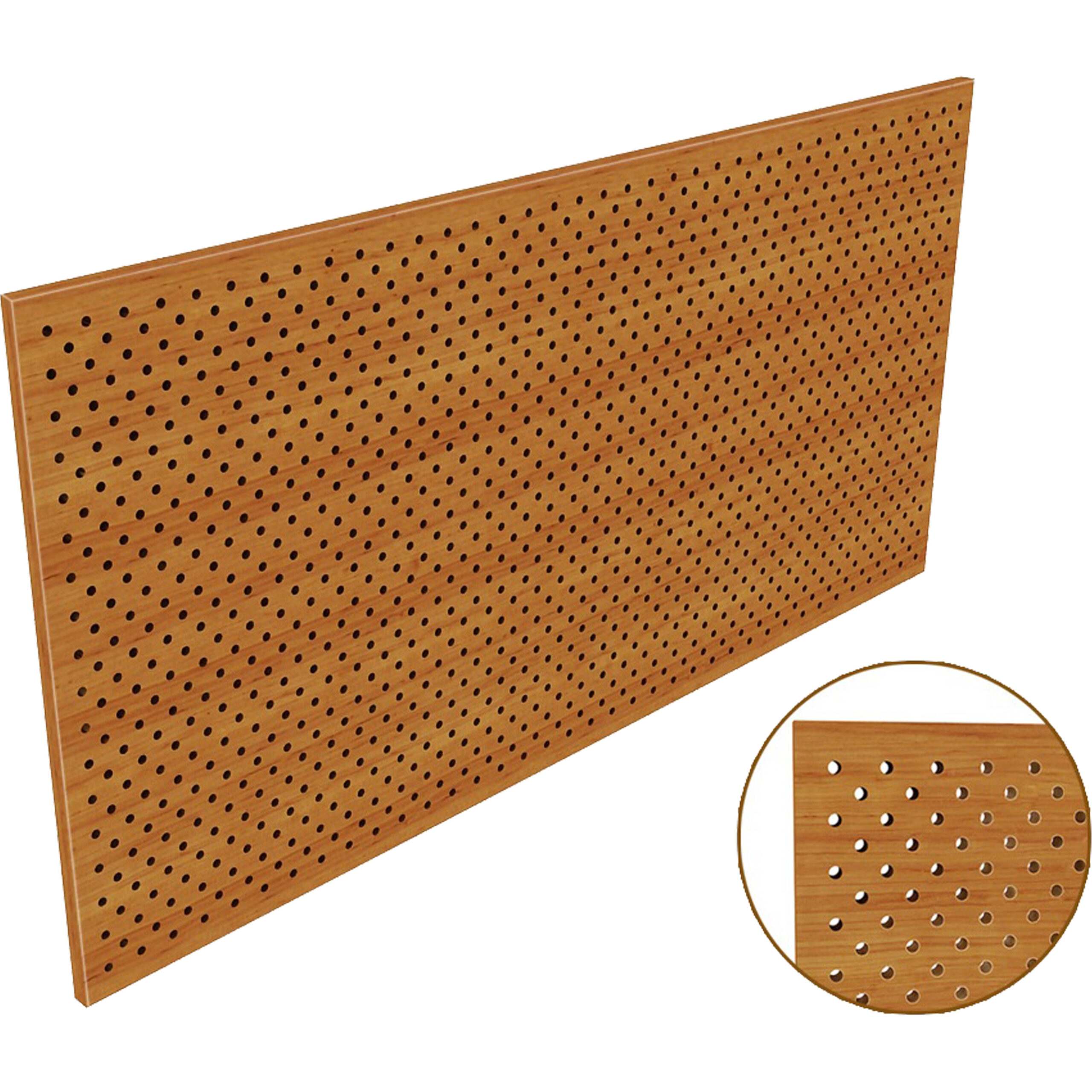

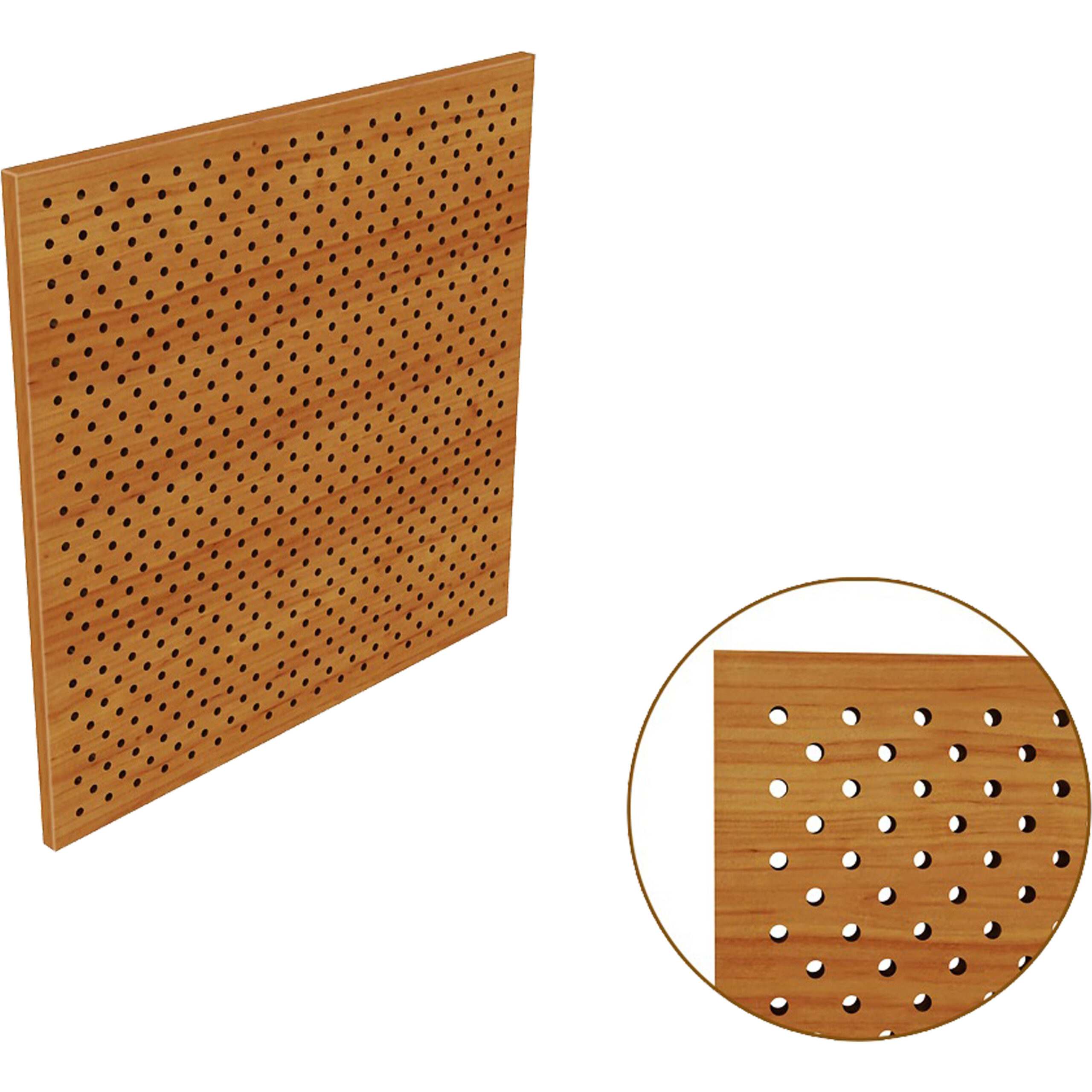

ESK102 Acoustic Wooden Panel

Product Specs

Raw Material 750 kg/m³ density MDF
Surfaces MDFLam, Natural Veneer, Engineered Veneer, Lacquer Paint, Laminate Veneer

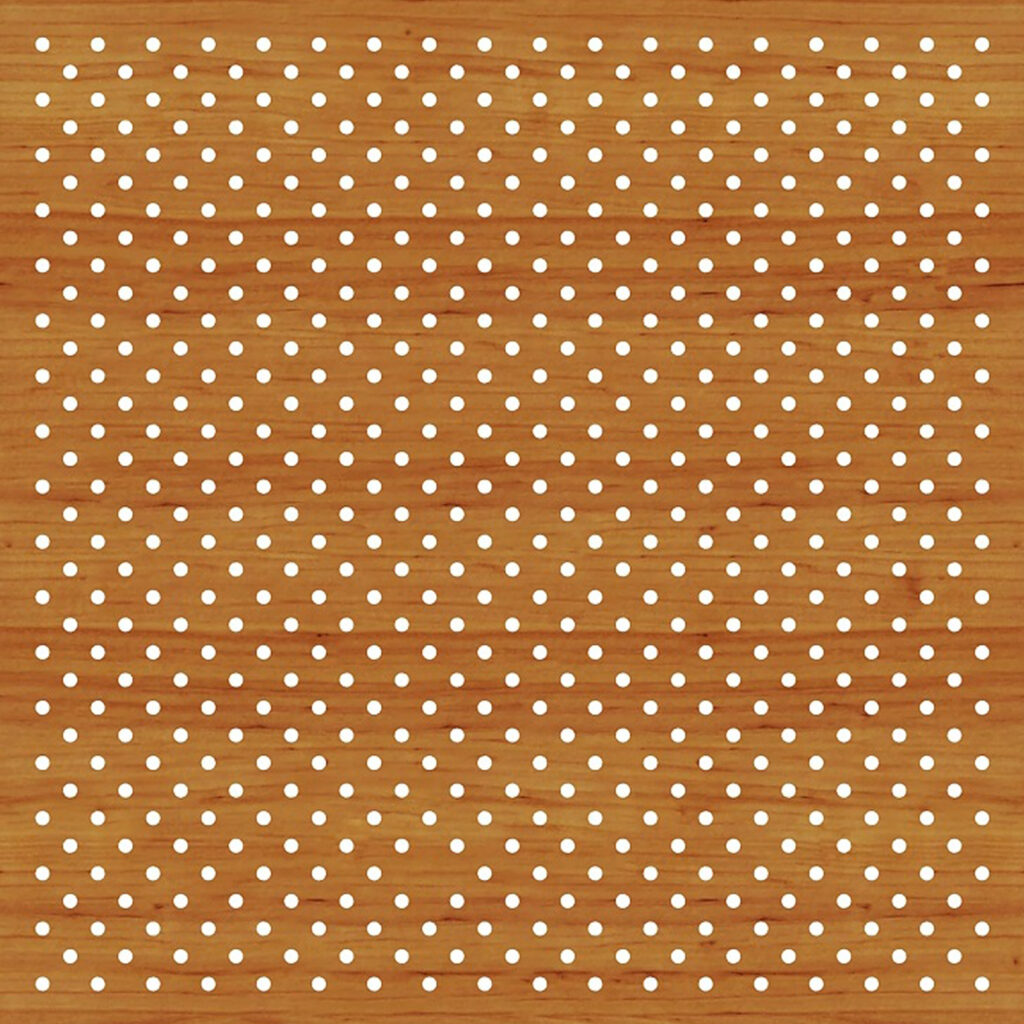

Front Surface Perforated
Number of Holes 2000 holes/m²
Distance Between Holes 32x16 mm
Hole Diameter 4, 6, 8, 10 mm
Back Surface Perforated / 0.2 mm Soundtex Acoustic Fabric Covered

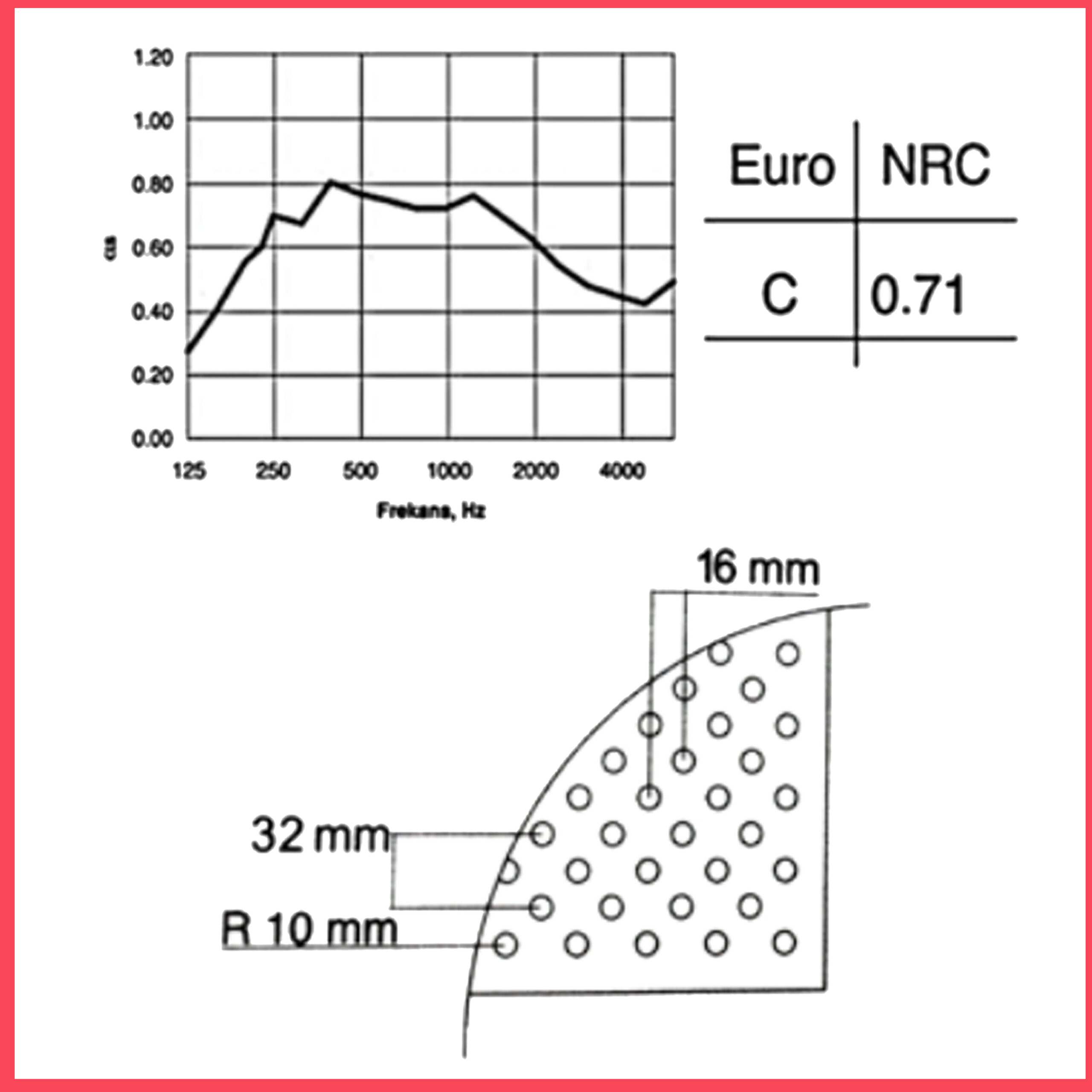

Acoustic Value (αw) 0,69 - 0,73
Dimensions 600x600 mm , 600x1200 mm , 517x1381 mm , 581x1180 mm
Acoustic Performance In order to obtain the most efficient results, it should be used with glass wool or rock wool plate with a thickness of 5 cm and a density of 50kg/m³.

Color Charts

Where it's used
